Brand Name : JCS
Model Number : JCS-LDX-2800
Certification : CE certificate
Place of Origin : Made In China
MOQ : 1 Set
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 30 Sets/Month
Delivery Time : 30 Days
Packaging Details : Wrapped With Film
Automatic Grade : Full-automatic
Type : Carton Printer Slotter Die Cutter Machine
Voltage : 220V/380V/440V
Plate Type : Letterpress
.Printing accuracy : ±0.15-±0.3mm
Printing Material : Corrugated Cardboard
Computerized Corrugated Box Flexo Printing Rotary Die Cutting Making Machine
Features
1. This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
2. Auto high quality materials and parts.
3. Well hardened and ground transmission gears, hardness more than 60(HRC).
4. Auto zero return and auto reset.
5. All gaps between cylinders and rollers are computerized and/or motorized control.
6. Vacuum transfer system used in all printing sections.
7. Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
8. All cylinders and rollers are chromed plated for ideal hardness.
9. PLC control system with touch screen control.
10. Able to save order,speed up the order shift.
11. All electronic and pneumatic components are with European standards.
12. Able to facilitate the production management.
Data
Data/Model | 900x2000 | 900x2400 |
| 1200x2400 | 1200x2800 |
Printing Speed(m/min) | 200 | 200 |
| 200 | 200 |
Max Machine Speed(pcs/min) | 300 | 300 |
| 250 | 220 |
Max Feeding Size(mm) | 880x2000 | 880x2400 |
| 1180x2400 | 1180x2800 |
Min Feeding Size(mm) | 280x640 | 280x640 |
| 320x700 | 320x700 |
Skip Feeding(mm) | 1100x2000 | 1100x2400 |
| 1500x2400 | 1500x2800 |
Max Printing Area(mm) | 800x2000 | 800x2400 |
| 1150x2400 | 1150x2800 |
Thickness of Printing Plate(mm) | 7.2 | 7.2 |
| 7.2 | 7.2 |
Min Panel(mm) Slot Type L. | 240x80x240x80 | 240x80x240x80 |
| 260x90x260x90 | 260x90x260x90 |
Max Slotting Depth(mm) | 250 | 250 |
| 320 | 320 |
Max Thickness of Sheet(mm) | 8 | 8 |
| 12 | 12 |
Dimension(LxWxH) | T:11659X4240X3200 | T:11659X4800X3200 |
| T:13015X4800X3500 | T:13015X5220X3500 |
Advantage
1. CNC control system (Intelligent Control)
2. Environmental Protection and Energy Saving, use washable ink;
3. Printing accuracy can be ±0.15-±0.3mm;
4. Printing plate can be 90-130LPI;
5. Varnishing and die-cutting unit are available.
![]() |

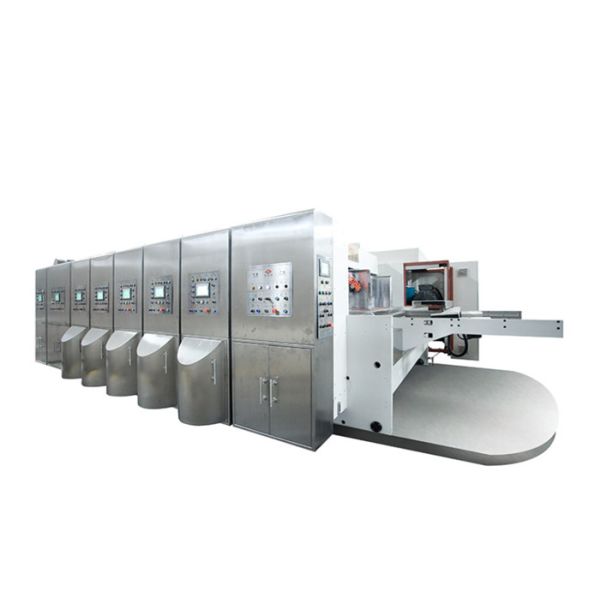

Computerized Corrugated Flexo Printing Machine , Rotary Die Cutting Machine Images |
